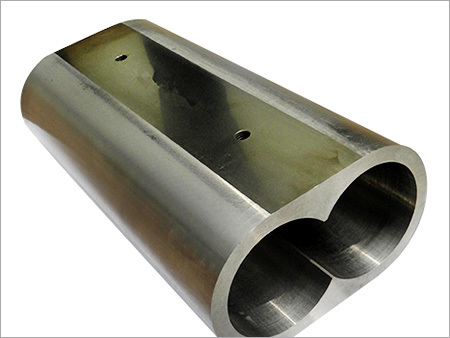

Bimetallic Screw Barrel

Bimetallic Screw Barrel
Bimetallic Screw Barrel
Product Code : BSB-04
Brand Name : ZHOUSHAN QUNYING
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
Product Description

Barrel is one of the most important components of plasticizing devices. On other hand, Bimetallic Barrel for Parallel Twin Screw Extruder is suitable for processing nylon plus fibers glass, PP plus extended fiber glass, magnetic fiber, ceramic powder and various other engineering plastics. This product is made with a thick layer of alloy (2-3 one side) in order to fulfill different customers’ needs. Moreover, Bimetallic Barrel for Parallel Twin Screw Extruder is available in different inner diameter and length.

Specializing in the manufacture of Barrels for Twin-Screw Extruders ,CNC machining centers are used for precision processing, the reasonable processing technology and advanced testing equipment effectively ensure the quality of each product.

Technical Specification

Model

Size WxHxL

Hole Diameter (mm) Φ

Center Distance D (mm)

20

115x105x132

Φ23

18.4

30

135x115x120

Φ30.6

26

35

140x120x140

Φ36

30

36

160x140x150

Φ36

30

40

175x145x160

Φ41.6

34.5

50

190x150x190

Φ51

42

52

200x155x210

Φ52

43

53

210x160x220

Φ53.3

48

58

220x175x240

Φ58

48

60

210x170x240

Φ60

52

65

210x170x240

Φ63

52

75

260x200x290

Φ71.8

60

85

280x215x320

Φ81.9

67.8

92

310x240x360

Φ92

78

95

310x240x360

Φ94

78

110

330x240x420

Φ109

91.5

125

390x290x500

Φ125

98

135

370x300x410

Φ134

110


Material

A Wc-10 Grade A WC-10 tungsten carbide alloy

Processing range

16mm-Φ450mm, 900mm, Inner diameter: Φ16mm-Φ450mm, effective length to 9000mm

Processing technic

1.5mm-2mm, 3mm-6mm, Centrifugal casting, alloy layer reach 1.5mm-2mm one side, maximum reach 3mm-6mm one side

Alloy powder composition

(50%-60%), Wc (50%-60%), C, Si, Cr, B, Ni, Mo, Co, etc.

The index of hardness

HRC62-65, 5~6
HRC62-65, the service life of 5-6 times longer than the nitrided one

Characteristics of alloy powder

High wearing resistance, high corrosion resistance and high temperature resistance

Apply to

30%-50%, LCP, Nylon plus 30% - 50% glass fiber, bakelite, magnetic powder, ceramic powder, aluminum magnesium powder, iron powder, LCP and halogen-free flame retardant plastic.
