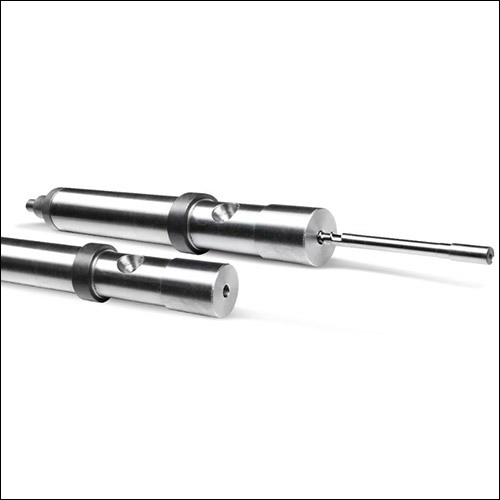

Injection Screw Barrel

Injection Screw Barrel
Injection Screw Barrel
Product Code : ISB-30
Brand Name : ZHOUSHAN QUNYING
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
Product Description
Injection Screw Barrel

As a prestigious organization, we are engaged in offering our wide assortment of meticulously developed Injection Screw Barrel to our valued clients. The offered barrel is produced under the supervision of our veteran professionals by utilizing well chosen raw materials and state of the art technical knowledge. Precise dimension, rigid construction, superior and long lasting surface finishing are some of the key attributes of this screw barrel. Its application can be noticed in automotive and electrical industries. Customers can obtain our range of Injection Screw Barrel at reasonable price range.

Specification Parameter :

Amount of injection

(g)

screw diameter x length(mm)

barrel diameter x length(mm)

Amount of injection(g)

screw diameter x length(mm)

barrel diameter x length(mm)

30-90

30x900

85x860

800-1250

75x1825

170x1725

60-125

35x910

85x860

1000-1500

80x2000

180x1805

100-150

38x935

95x900

1250-2000

85x2300

190x1900

125-160

40x980

95x910

2000-3000

90x2700

210x2000

125-300

42x1030

105x8880

2500-5000

100x2600

230x2405

250-400

45x1210

115x1165

3000-6000

110x2600

256x2590

300-500

50x1300

125x1260

4000-10000

120x2800

256x2800

450-600

55x1335

130x1320

6000-8000

130x3010

256x2970

500-700

56x1350

130x1350

8000-10000

145x3010

256x3200

500-700

60x1380

140x1350

10000-15000

160x3500

270x3200

650-800

65x1415

150x1420

13000-25000

170x3415

317x3380

700-1000

70x1790

160x1685





Technical Parameter

Base Material

1)38CrMoAlA(JIS SACM645);2)Cr12MOV(JIS SKD-11) ;
3)4Cr5MoSiV1(JIS SKD-61) ;4)42CrMo(AISI 4140)

Bimetallic Alloy Materials

1)Fe-based alloy 2)Ni-based alloy/Deloro alloy
3)Co-based alloy 4)NiCo-based alloy
5)Tungsten carbide/Wolfram carbide

Double-alloy level

Level A - containing Tungsten of 40%
Level B - containing tungsten of 25%
Level C - containing tungsten of 9.5%

Surface Treatment

Heat Treatment
High Frequency Treatment
Nitriding treatment(120 Hours):
Depth of Nitrided Layer: 0.5-0.8 mm
Hardness of Nitrided Layer: 900-1020Hv (HRC56o-65
o)
Hard Chrome Plating treatment:
Thickness of Hard Chrome Plating Layer: 0.05-0.10mm
Hardness of Hard Chrome Plating Layer: 950HV
Nickel alloy plating.treatment:
Bimetallic Barrel/Cylinder: Centrifugal Casting (Inlay Alloy)
Bimetallic Screw: Plasma Alloy Coating Spraying
Depth of Bimetallic Layer: >2mm
Hardness of Bimetallic Layer: HRC55
o-72o
Spraying corrosion wear-resisting dual metal layers

Basic information

Roughness of the surface:Ra0.4um
Linearity of the screw: 0.015mm
Linear axis limit: 0.02mm
Hardness after Hardening & Tempering: HB240-280
Fragility of Nitration: Two class

Material Application

1)General Plastics
2)ABS,PA,PC,PE,PET,PP,PS,EVA,PU,PVC,U-PVC,etc
3)PA + GF(Glass Fiber)
4)Flame-resistant Reinforced Plastics
5)Modified Engineering Plastics
6)All kinds of Mixed Recycled Material(in Scrap or Granule), PVC + 30% CaCo3, etc
